TRI-AXIAL FABRIC
Tri-axial Fabric Series

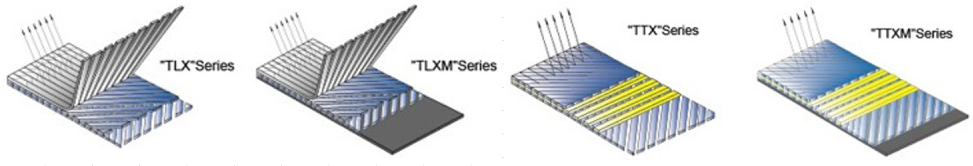

The general direction of this product series are ETLX 0°/+45°/-45°and ETTX +45°/90°/-45°,also the directions can be randomly changed from ±30°to ±80°.the fabric weight is 450g/m2~2000g/m2,and chop mat with 50~500g/m2 or non-woven fabric can be stitched under the layers.
Main products: E-TLX450, E-TLX750, E-TLX808, E-TLX1200, E-TLX1215, E-TLX1500; (The weight range is 450~1800g/㎡)
Fiberglass stitched fabrics, as high-performance composite materials, have advantages of light weight, impact resistance, durability and high strength and others.The triaxial fabrics provides better axial force, aerodynamic lift and torque during the blade operation.
| Example: | ETLX250/250/250-1250 | |||||||||||||||||||
| ETLX: | E-glass Tri-axial Fabric 0° +45°-45° | |||||||||||||||||||
| 250 | 0°Roving Density (g/m2) | |||||||||||||||||||
| 250 | .+45°Roving Density (g/m2) | |||||||||||||||||||
| 250 | .-45°Roving Density (g/m2) | |||||||||||||||||||
| 1250 | Roll Width | |||||||||||||||||||
| PRODUCT TECHNICAL CHARACTERISTICS (nominal values) | ||||||||||||||||||||
| ETLX 0°/+45°/-45° | ||||||||||||||||||||
| Product No | Overall Density | (0°) Roving Density | (+45°) Roving Density | (-45°) Roving Density | Chop Density | Polyester Yarn Density | ||||||||||||||
| g/m2 | g/m2 | g/m2 | g/m2 | g/m2 | g/m2 | |||||||||||||||
| E-TLX600 | 614.9 | 3.6 | 300.65 | 300.65 | - | 10 | ||||||||||||||
| E-TLX750 | 742.67 | 236.22 | 250.55 | 250.55 | - | 5.35 | ||||||||||||||
| E-TLX1180 | 1172.42 | 661.42 | 250.5 | 250.5 | - | 10 | ||||||||||||||
| E-TLX1850 | 1856.86 | 944.88 | 450.99 | 450.99 | - | 10 | ||||||||||||||
| E-TLXM1260/100 | 1367.03 | 59.06 | 601.31 | 601.31 | 100 | 5.35 | ||||||||||||||
| ETTX +45°/90°/-45° | ||||||||||||||||||||
| Product No | Overall Density | (+45°) Roving Density | (90°) Roving Density | (-45°) Roving Density | Chop Density | Polyester Yarn Density | ||||||||||||||
| g/m2 | g/m2 | g/m2 | g/m2 | g/m2 | g/m2 | |||||||||||||||
| E-TTX700 | 707.23 | 250.55 | 200.78 | 250.55 | - | 5.35 | ||||||||||||||
| E-TTX800 | 813.01 | 400.88 | 5.9 | 400.88 | - | 5.35 | ||||||||||||||
| E-TTX1200 | 1212.23 | 400.88 | 405.12 | 400.88 | - | 5.35 | ||||||||||||||
| E-TTXM1460/101 | 1566.38 | 424.26 | 607.95 | 424.26 | 101.56 | 8.35 | ||||||||||||||
| PRODUCT AVAILABILITY (standard ref.) | ||||||||||||||||||||
| ○ | All range of widths (between 10 and 200 cm) and weights are available. | |||||||||||||||||||
| ○ | Most combinations of weights and widths can be supplied (may be subject to minimum order quantities). | |||||||||||||||||||
| ○ | We can make as customer's idea. | |||||||||||||||||||
| PRODUCT PACKAGING | ||||||||||||||||||||
| Tri-Axial Mats are wound onto a paper tube which has an inside diameter of 86mm, and the roll has a diameter of 300mm. The roll is wrapped up with plastic film, and then packed in a cardboard box or wrapped up with kraft paper. The rolls are to be horizontally placed. For transportation the rolls can be loaded into a container directly or on pallets. | ||||||||||||||||||||
